Electrical Characteristics |
||
|
SPD type |
|
1+2+3 |
|
Network |
|
230/400 V 3-phase+N |
|
AC system |
|
TT-TNS |
|
Nominal line voltage |
Un |
230 Vac |
|
Max. AC operating voltage |
Uc |
255 Vac |
|
Temporary Over Voltage (TOV) Charasteristics - 5 sec. Without disconnection |
UT |
335 Vac withstand |
|
Temporary Over Voltage (TOV) Charasteristics - 120 mn Without disconnection or with safety disconnection |
UT |
440 Vac disconnection |
|
Temporary Over Voltage N/PE (TOV HT) |
UT |
1200 V/300A/200 ms withstand |
|
Without disconnection or with safety disconnection |
||
|
Residual Current Leakage current to Ground |
Ipe |
None |
|
Follow current |
If |
None |
|
Impulse current by pole max. withstand 10/350µs by pole |
Iimp |
8 kA |
|
Total lightning currentmax. total withstand @ 10/350µs |
Itotal |
32 kA |
|
Nominal discharge current 15 x 8/20 µs impulses |
In |
30 kA |
|
Max. discharge current max. withstand @ 8/20 µs by pole |
Imax |
100 kA |
|
Withstand on Combination waveform IEC 61643-11 |
Uoc |
6 kV |
|
Class III test: 1.2/50µs - 8/20µs |
||
|
Connection mode(s) |
|
L/N and N/PE |
|
Protection mode(s) |
|
Common/Differential mode |
|
Residuel voltage at 5 kA @ 5 kA (8/20µs) |
Up-5kA |
0.9 kV |
|
Protection level L/N @ In (8/20µs) |
Up L/N |
1.4 kV |
|
Protection level N/PE @ In (8/20µs) |
Up N/PE |
1.5 kV |
|
Admissible short-circuit current |
Isccr |
25 000 A |
|
Mechanical Characteristics |
||
|
Technology |
|
MOV |
|
SPD configuration |
|
3-phase+Neutral |
|
Connection to Network |
|
By screw terminals: 2.5-25mm² / by bus |
|
Format |
|
Plug-in modular box |
|
Mounting |
|
Symmetrical rail 35 mm (EN 60715) |
|
Housing material |
|
Thermoplastic UL94 V-2 |
|
Operating temperature |
Tu |
-40/+85°C |
|
Protection rating |
|
IP20 |
|
Failsafe mode |
|
Disconnection from AC network |
|
Disconnection indicator |
|
2 mechanical indicators by pole |
|
Spare module(s) |
|
DSM100R-230 |
|
Remote signaling of disconnection |
|
Output on changeover contact |
|
Dimensions |
|
See diagram |
|
Disconnectors |
||
|
Thermal disconnector |
|
Internal |
|
Installation ground fault breaker |
|
Type 'S' or delayed |
|
Back-up protection device |
|
100 A min. - 125 A max. - Fuses type gG |
|
Standards |
||
|
Standards compliance |
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
|
Part number |
||
|

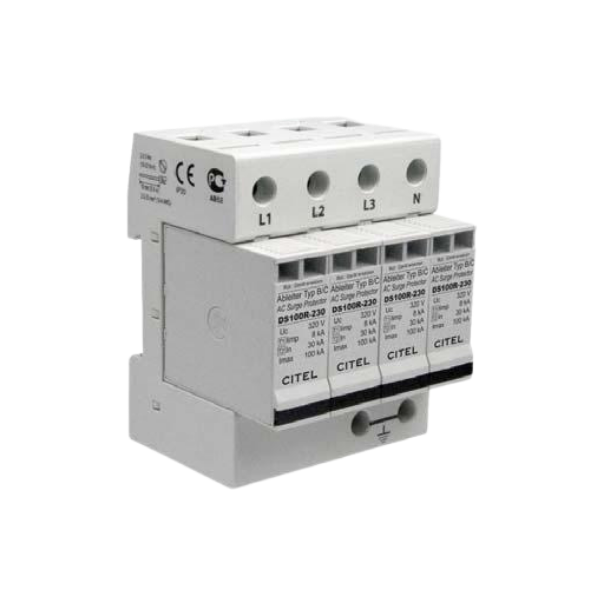

491932101 DS104RS-230/G/TR (with remote signalling) |
||
|
491912101 DS104R-230/G/TR (without remote signalling) |
||
